Magnostics M96S-1 Magnetic Separator
/images/uploads/magnostics/products/magnetic-arrays/MagnosticsM96S-1.jpg
Price: Request for Quote
Availability:Evaluation only

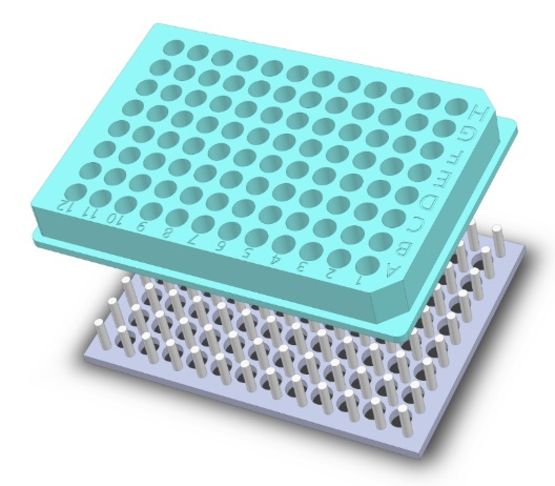

Product description: The M96S-1 Magnetic Separator is designed for medium-throughput purification of nucleic acids using Si@HiMag beads in specific 96-well plates. Our separator uses an array of powerful magnets to achieve rapid and efficient separation. During the washing and elution steps, the initial homogeneously dispersed Si@HiMag beads are rapidly separated into two pellets on one side of deep-wells, that allow for long pipette tips to thoroughly remove the buffer solution and minimize the operators error to ensure a convenient and high efficient separation.
Magnostics’ Si@HiMag particles excel in performing demanding separations from viscous samples, e.g. virus lysis buffers for RNA extraction, sputum, serum or whole blood, or in large volume applications where efficiency matters. The uniformity of these particles also makes them ideal for magnetic tweezers experiments
.
Features
Superior separation efficiency
Rapid separation times – 800 nm Si@HiMag in 60 sec and 200 nm Si@HiMag in 100 sec
Optical ports to monitor separation efficiency
Solvent resistant
Compact footprint - 132 mm x 90 mm
Weight: 270g

/images/uploads/magnostics/products/magnetic-arrays/MagnosticsM96S-1-Specs.jpg

Specifications
Volumes/well 25-360 μL
Bead compatibility Superparamagnetic
Separation times 60-100 seconds
Optical port diameter 7 mm
96-well plate compatibility Thermofisher 96-well,  Flat bottom (Cat 611F96)
Part Number M96S-1

.

TYPICAL APPLICATIONS
Nucleic acid purification
Colorimetry
Fluorimetry
